Richard

$26,796.00 CAD

Sale:

216 sq ft Premium Model

218"x143"

216

508

2-3/4"

3/4"

107"

3/12 14D

89"

Complete Package Options

The following items may need to be added to your Home Kit Build. Note: we provide the purchase of the initial kit above, but the list of items below may also be needed. If you already have things in place you can leave those items out.

Ground Work/Site Prep/Gravel

The location needs to be clear and ready. Gravel may need to be brought in. If you are unsure how ready your site is, one of our team can come out and make an assesment to confirm where you're at.

Base: Concrete Pad or Concrete Foundation/Basement

Your Home or Cabin will definitely need to be put on a foundation. Options are for a concrete slab/full foundation on prepared ground. Depending on your ground, other options may need to be considered.

Roofing (ice & water barrier & steel)

The building kits come with tongue and groove roof slats - but for water tightness you will want the ice/water barrier and the steel roof.

Electrical

Plumbing

Interior Finishes

Kitchen, Cabinets and Counters Install
Bathroom Install
Trim and Millwork
Wall Finishes
Flooring
Fixtures
Interior Stain

Door and Window Upgrades

Exterior Stain (wall protection)

We recommend nothing but the best. Our team can do this for you - or we can point you in the right direction.

Insulation & Sheathing/Exterior Stud & Siding Kits

If you would like that extra layer of protection, and year round use, we can add insulation and sheathing. This would be recommended for the Cabins and will be necessary for Homes.

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

We offer 3 types of siding kits to cover the exterior of the home or cabin, or we can provide a Custom Local Quote:

EZ Log Semi D-Log tongue & groove wood siding (Add 10%)

Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)

EZ Log Full D-Log tongue & groove wood siding (Add 14%)

Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

Heavy Duty maintenance free extruded PVC polymer siding (Add 20%)

Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)

Custom Local Siding Quote

We can also provide you a quote for a locally sourced siding option. PVC, Steel, or other.

Note: Siding Kits will also need locally sourced 2×6 studs, stud screws, siding, corner blocks, & trims, extending the roof overhang 12" and is not included in the percentage price listed above.

Customization

This would be for any modfications to the kit itself, or if you would like throw on a deck/porch, alter various items or add in any other options not already listed.

Build Team

For ease of mind to get all of the above or just specific steps, you can request our build team to do it for you. It can be a one stop shop - the Complete Package Option. Either choose all of the above, or just pick which steps you need us for.

Ready To Buy?

SHIPPING & STRUCTURAL ENGINEERING INCLUDED

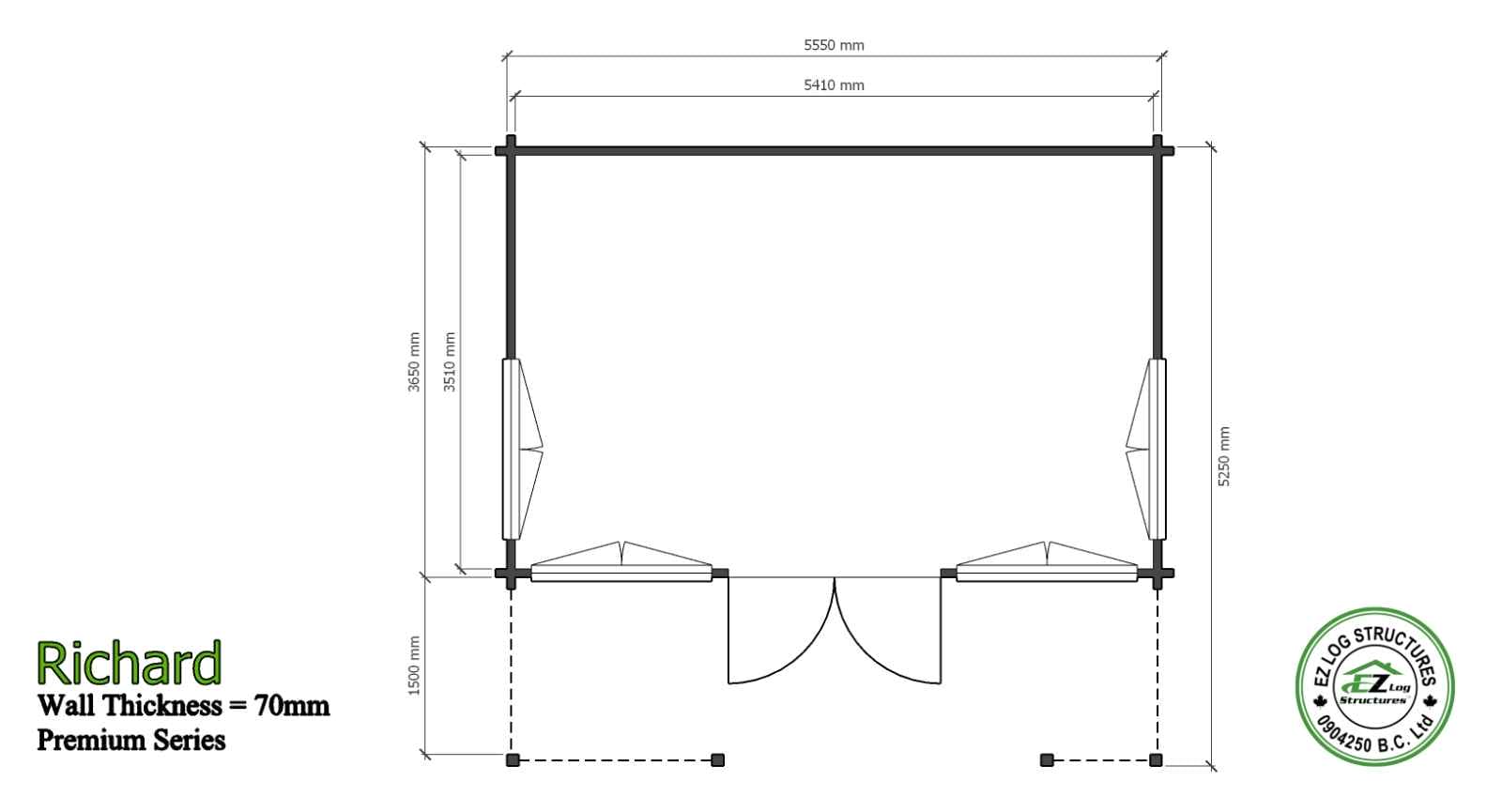

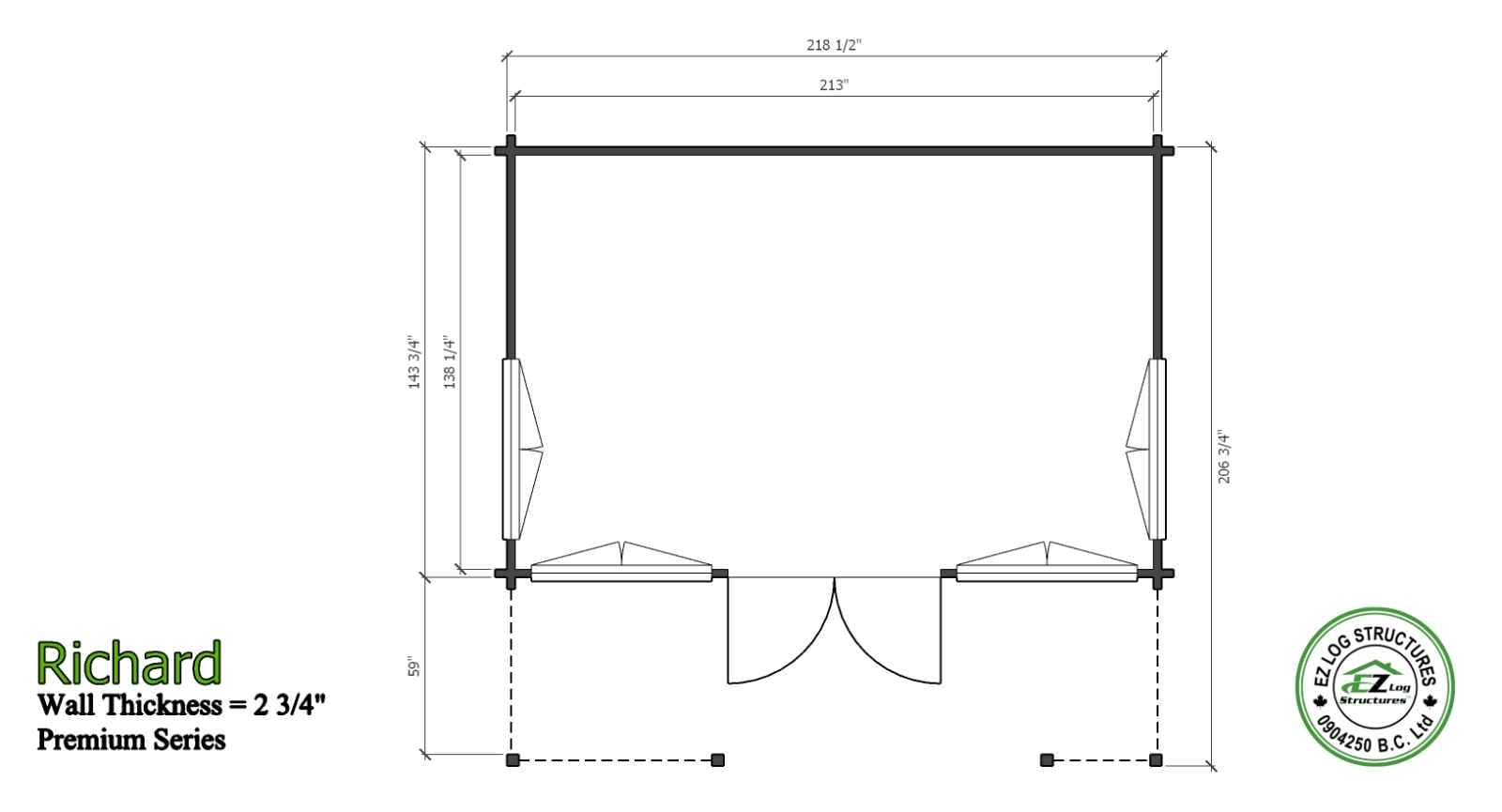

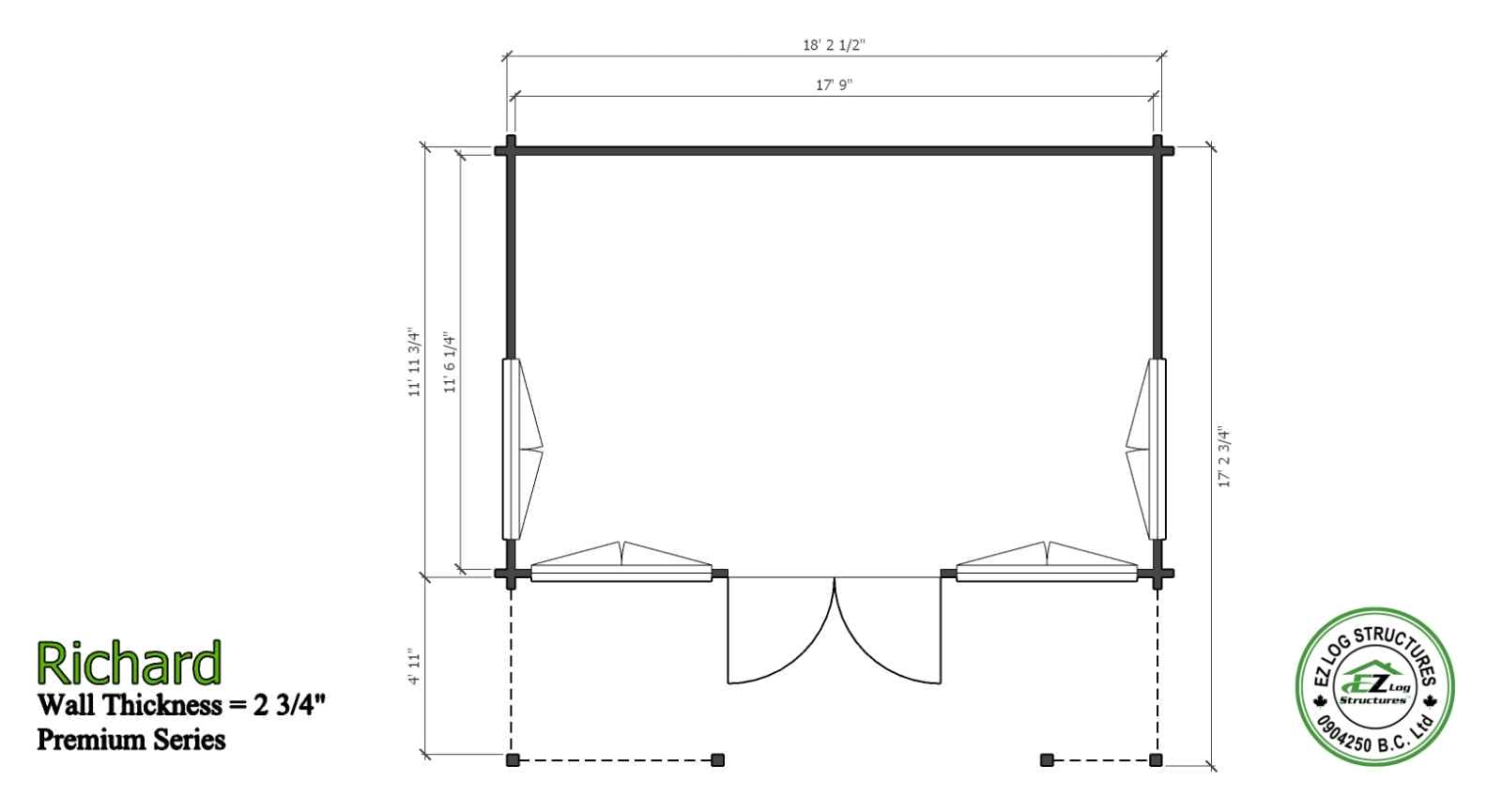

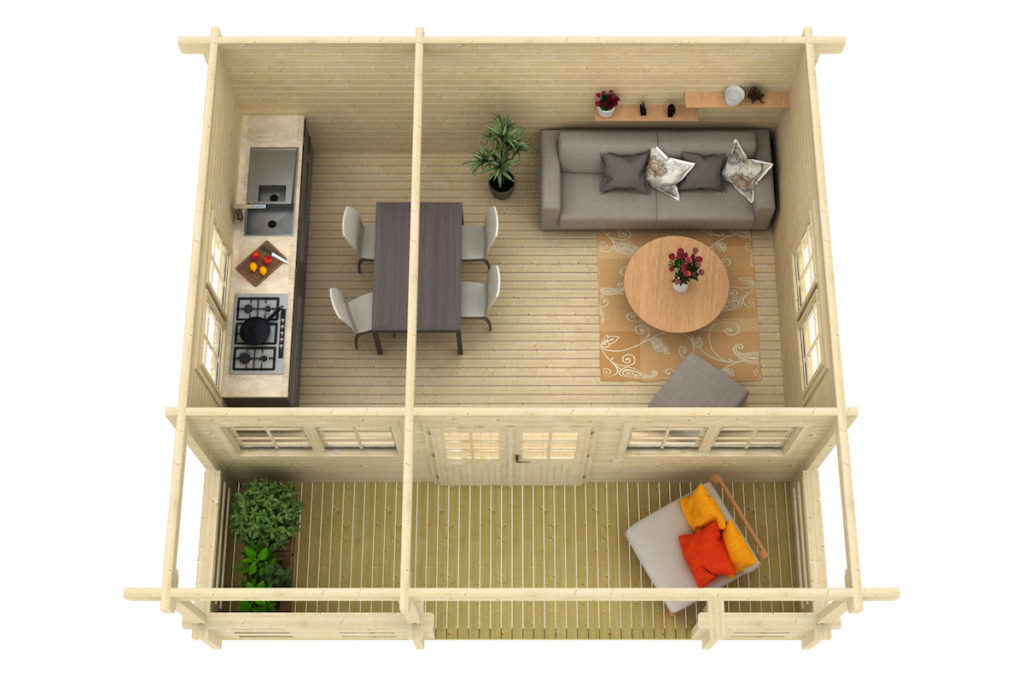

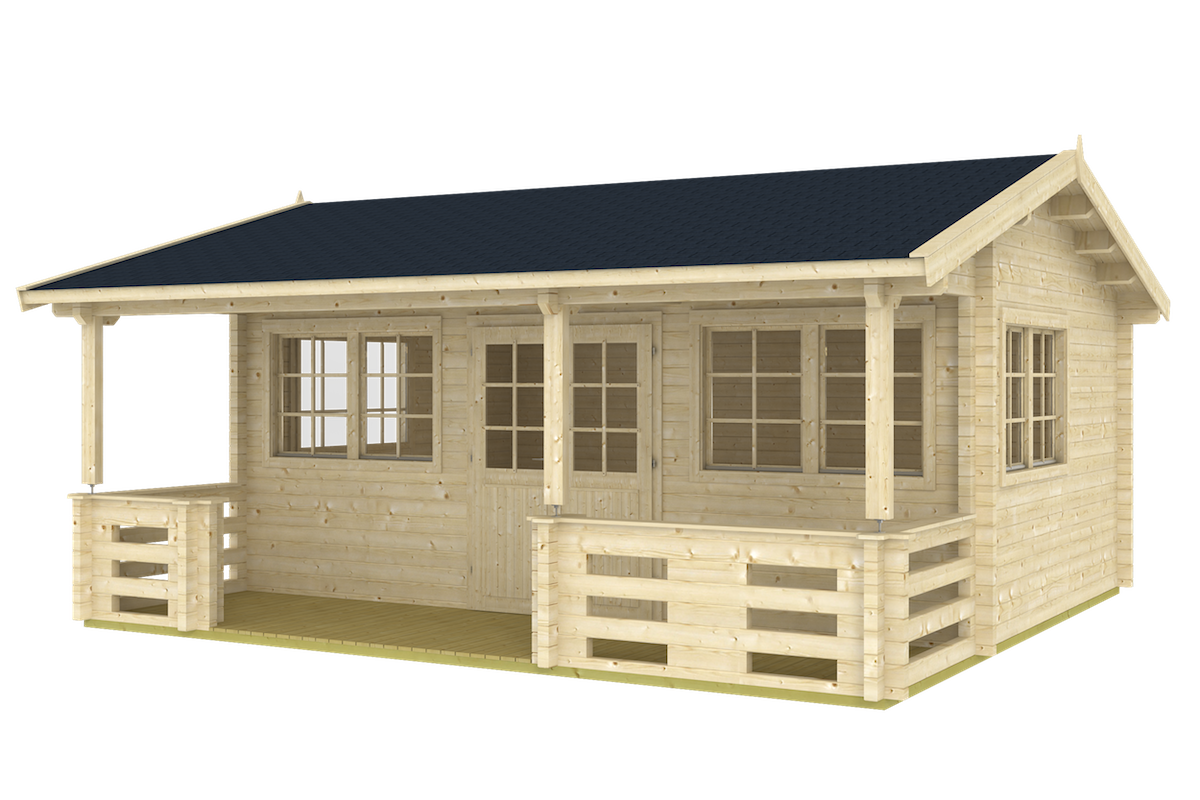

Richard is a great backyard office, cabin, she shed, man cave or guest cabin. The vaulted ceilings provide an open comforting interior. (sq footage is based on the total footprint, living space could be less, see floor plans)

Kit includes:

no floor, ready to assemble on a concrete slab or wood foundation
pre-cut, numbered exterior walls
pre-cut, numbered interior walls
pre-cut, numbered gable components
3/12 roof pitch (14 degrees)
vaulted, cathedral ceilings
sidewall height 89″ (2260mm)
pre-cut, 4″x 8″ (100mm x 200mm) glulam roof purlins spaced 22″ (558mm) or less
pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
pre-cut, numbered fascia boards
508 total sq’ of wall area
508 sq’ of exterior wall surface
60 lineal’ per row
398 sq’ roof area (37 sq’ meters)
4 double wide wood windows 60″x 39″ (1530mm x 990mm)
1 exterior double door 61″x 80″ (1550mm x 2040mm) 1/2 glass tempered

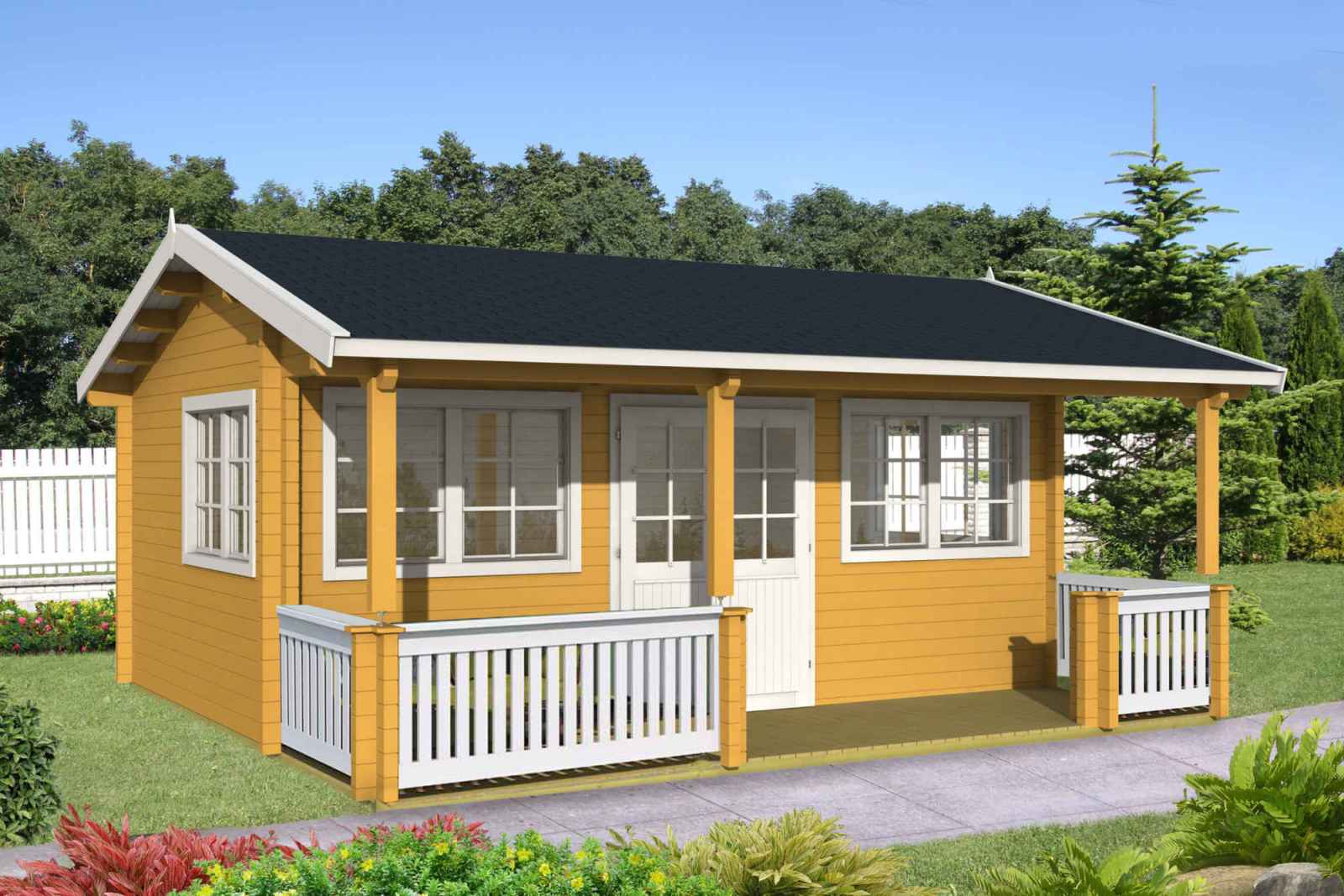

deck railings with vertical balustrades
adjustable posts
hardware for doors & windows
2 spare wall logs/spare roof boards
550 – 8″ log screws to connect each row, gable components, purlins
packaged/wrapped for sequence of assembly
FREE SHIPPING

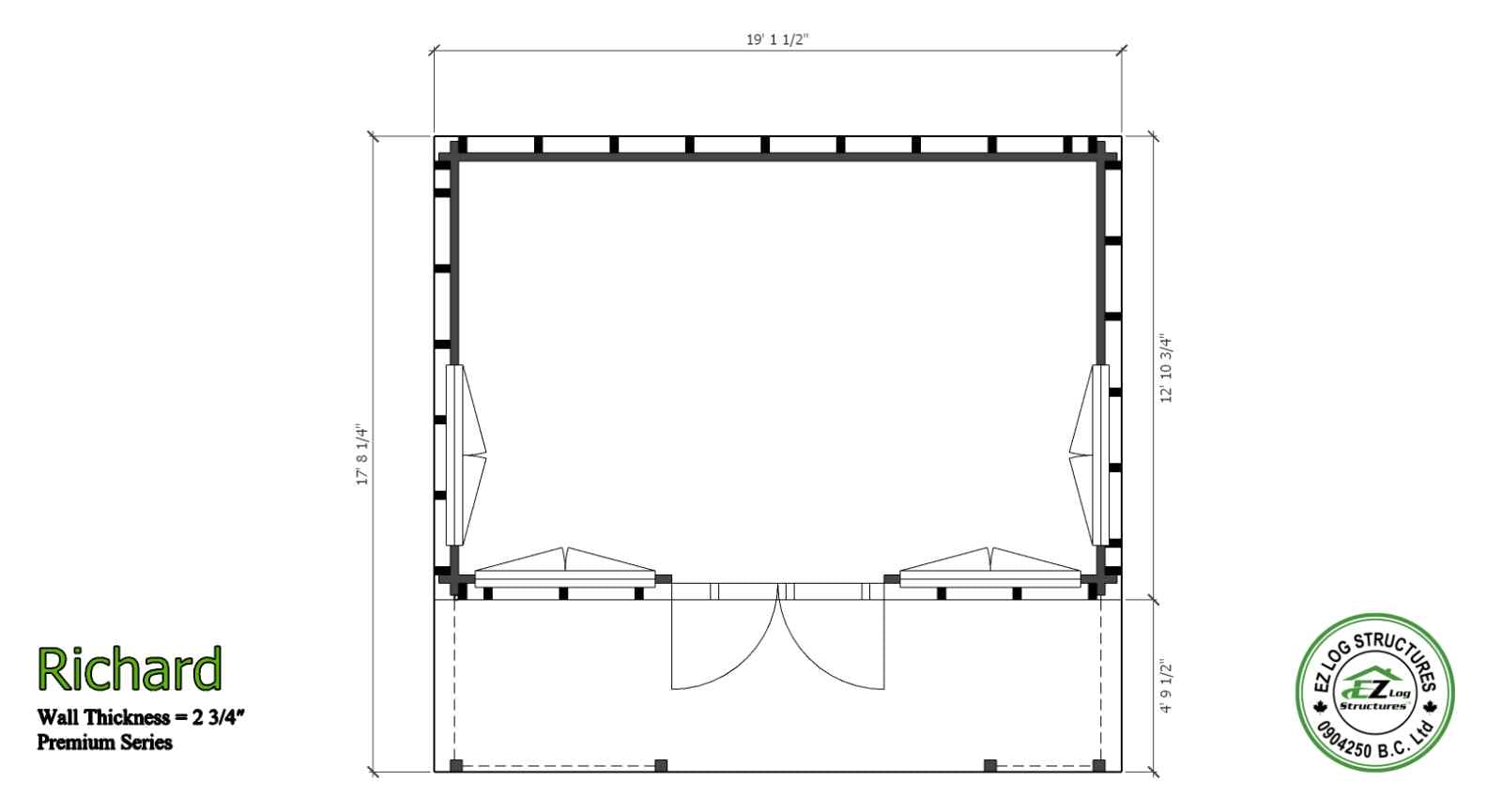

FOUNDATION SIZE DRAWING
STAMPED STRUCTURAL ENGINEERING

SIDING OPTIONS

Choose from 3 types of EZ Log siding to cover the exterior of your home. Our siding installs over the exterior studs, without the need for plywood. Each kit includes siding, corner blocks, trims

Option 1:
Max semi D-Log wood siding
3/4″ x 5-1/8″ (18mm x 130mm)

Add $ 2,984.00 CAD

Option 2:
Otoczak full D-Log wood siding
1-1/8″ x 5-1/8″ (28mm x 130mm)

Add $ 4,880.00 CAD

Option 3:
Vox extruded maintenance free PVC polymer siding
5/16″ x 13″ (7mm x 330mm)

Add $ 8,286.00 CAD

WINDOW OPTIONS

Option 1:
Upgrade all wood windows to triple glazed/Low E/Argon gas filled (8 sash)

Add $1,280.00 CAD

Option 2: Upgrade all wood windows with our exclusive white PVC/Shutter windows with triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)

Add $2,880.00 CAD

Option 3:
Buildings can be ordered without windows or doors. Rough openings will be created for locally supplied windows & doors
